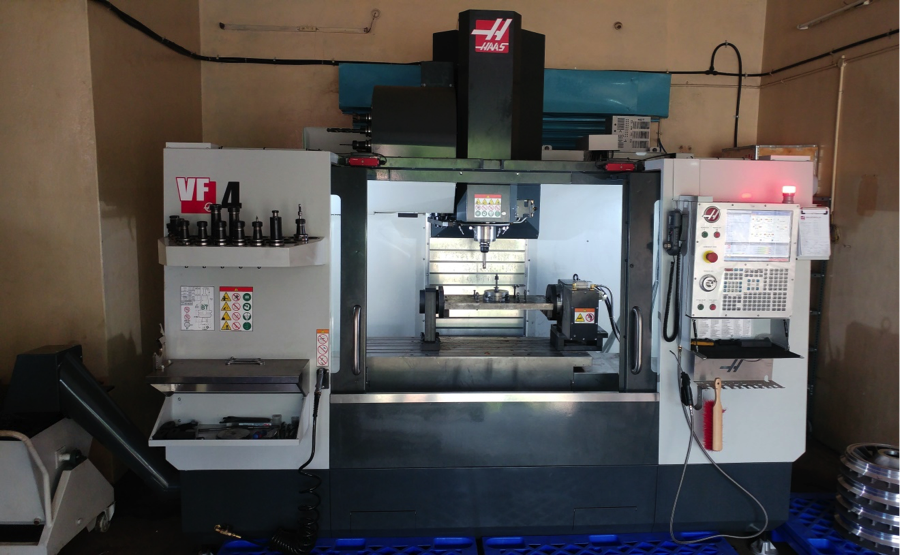

• XYZ Travels (1270mm x 508mm x 635mm)
• Table Size 1321 x 457 mm
• HRT210 CNC Rotary Table (4th Axis)
• Through Spindle Coolant 300 PSI
• High Speed Machining
• Power Failure Detection Module

• Dia 250 mm x 3 jaw Power Operated Hollow Chuck
• Maximum Turning length 700MM, Maximum Turning Diameter 320 MM
• A2-8 Spindle nose and 65 mm Bar Capacity
• Eight - Station Vertically Indexing Hydraulic Turret
• AC Spindle drive with Variable Speed 11/15 KW
• Spindle Speed Range 3500 RPM

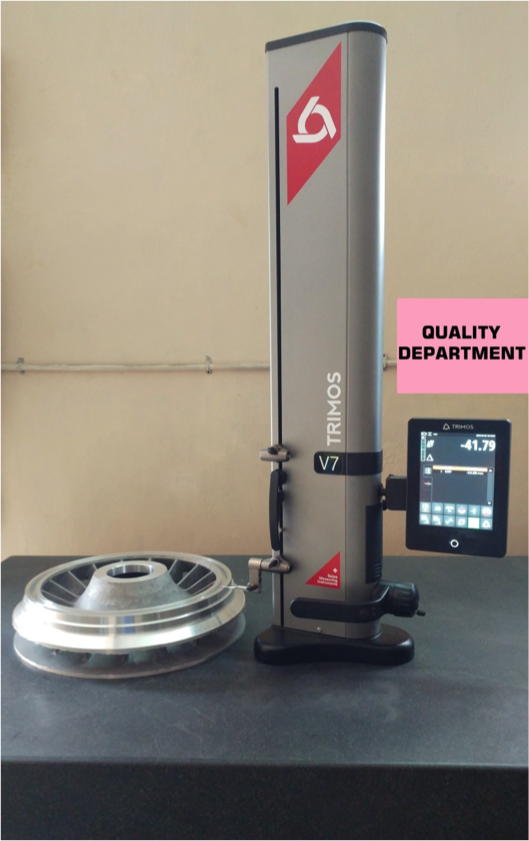

TRIMOS 2D HEIGHT GAUGE

MODEL V7-700

• Measuring range - 711 MM
• Measuring range (extension) - 1023 MM
• Max. Permissible Errors - 2+ L(mm)/400 Micron
• Repeatability - 1 Micron
• Maximal Resolution - 0.0001 MM
• Measuring force - 0.75 ÷ 1.5 Newton
• Air cushion - Available
• 2D Programming - Available
• Displacement - Manual or Motorized

IN-PROCESS INSPECTION

INSTRUMENTS

• Digital Height gauge
• Bore gauges up to 250MM
• Micrometers up to 400MM
• Digital Micrometers up to 100MM
• Digital Verniers up to 300MM
• Ordinary Verniers up to 1000MM
• Slip gauges up to 100MM
• Depth Verniner up to 250MM
• Surface Table Granite - 1600x1000x200MM
• Surface Roughness Tester
